EX-E1FUNV Double Compression Type 50mm Nickel Plated Explosion Proof Armoured Gland c/w lock nut (MM-EX-E1FUNV-50S)

Double compression armoured flameproof (Type “D”) gland for use in explosive atmosphere areas. Ex d, Ex e, Ex t. Suitable for SWA cables.

STANDARDS:

IECx, ATEX, EAC. Protection Type Ex d, Ex e, Ex t

FEATURES:

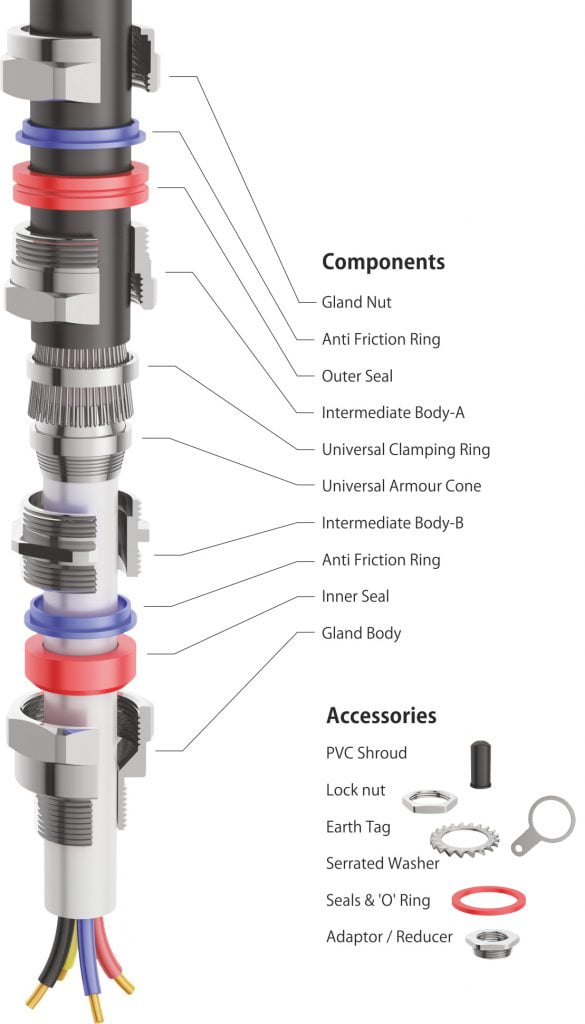

Type EX-E1FUNV Double Compression Armoured Gland
Cable Types For all types of IEC armoured cables.
Thread Metric M50
Inner Cable Dia.(mm) Min:29.5 Max:38.1
Outer Cable Dia.(mm) Min:35.2 Max:46.7
SWA Armour Dia(mm) Min:2.0 Max:2.5
Gland Material Nickel-plated Brass
IP Rating IP67
Sealing Ring Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard Seals (Nitrile) -20°C to +80°C. On request (Silicone) -60°C to +180°C.
Accessories PVC S/ LSF Shroud, Earth Tag, Serrated Washer, Adaptor / Reducer.
