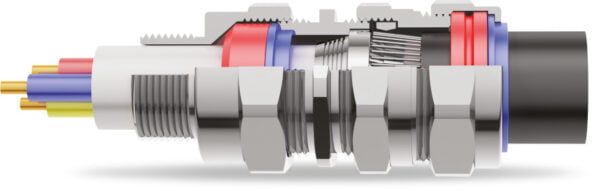

EX-E1FUNV Double Compression Type 25mm Nickel Plated Explosion Proof Armoured Gland c/w lock nut (MM-EX-E1FUNV-25S)

Double compression armoured flameproof (Type “D”) gland for use in explosive atmosphere areas. Ex d, Ex e, Ex t. Suitable for SWA cables.


IECx, ATEX, EAC. Protection Type Ex d, Ex e, Ex t

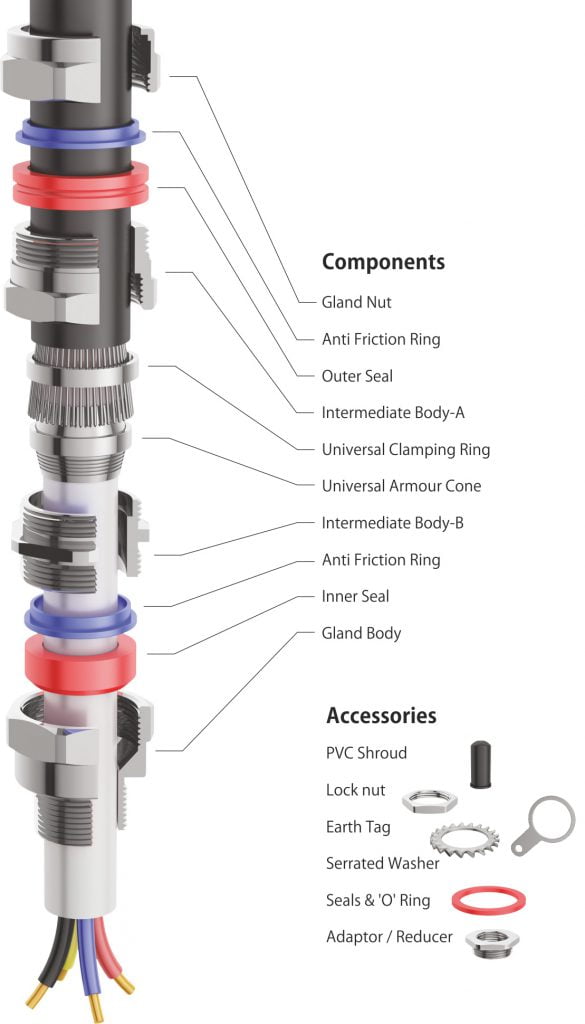

Type EX-E1FUNV Double Compression Armoured Gland
Cable Types For all types of IEC armoured cables.
Thread Metric M25
Inner Cable Dia.(mm) Min:11.2 Max:19.9
Outer Cable Dia.(mm) Min:14.0 Max:22.0
SWA Armour Dia(mm) Min:1.25 Max:1.6
Gland Material Nickel-plated Brass
IP Rating IP67
Sealing Ring Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard Seals (Nitrile) -20°C to +80°C. On request (Silicone) -60°C to +180°C.
Accessories PVC S/ LSF Shroud, Earth Tag, Serrated Washer, Adaptor / Reducer.

Datasheet (PDF)
