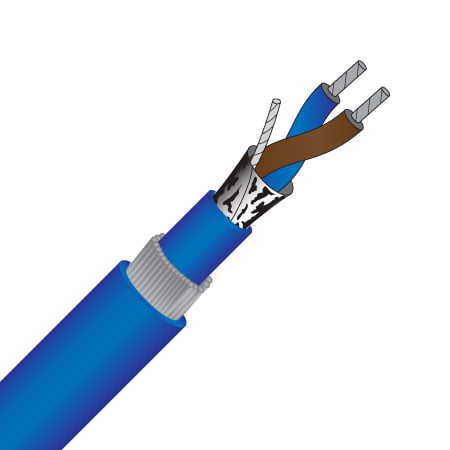

Fieldbus Cable, 1PR, 0.8MM, 18AWG, TCW, CS, SWA, BLUE, (FB53-8831A-272)

Physical Characteristics
Conductor 18AWG (0.80mm)
Stranding 7/0.40 Tinned Copper
Insulation 0.64mm FR-XLPE
Insulation Colour Brown/Blue
Shielding Aluminum/Polyester Tape c/w 7/0.20 Tinned Copper Drain Wire
Bedding 0.90mm FR-PVC Blue
Armour Galvanised Steel Wire
Sheath 1.0mm FR-PVC Blue
Operating Temperature -20°C to +105°C
Voltage Rating 300v UL PLTC/ITC
Insulation Test Voltage 7.5KvDC/2.5KvAC
Conductor Resistance 22.70 Ω/km
Inductance 0.673 mH/km
Mutual Capacitance 75 nF/km
Grounded Capacitance 135 nF/km
Capacitance Unbalance Max. 4.0 pF/m
Characteristic Impedance 100Ω +/- 10
L/R Ratio 15 µH/ΩConductor 18AWG (0.80mm)
