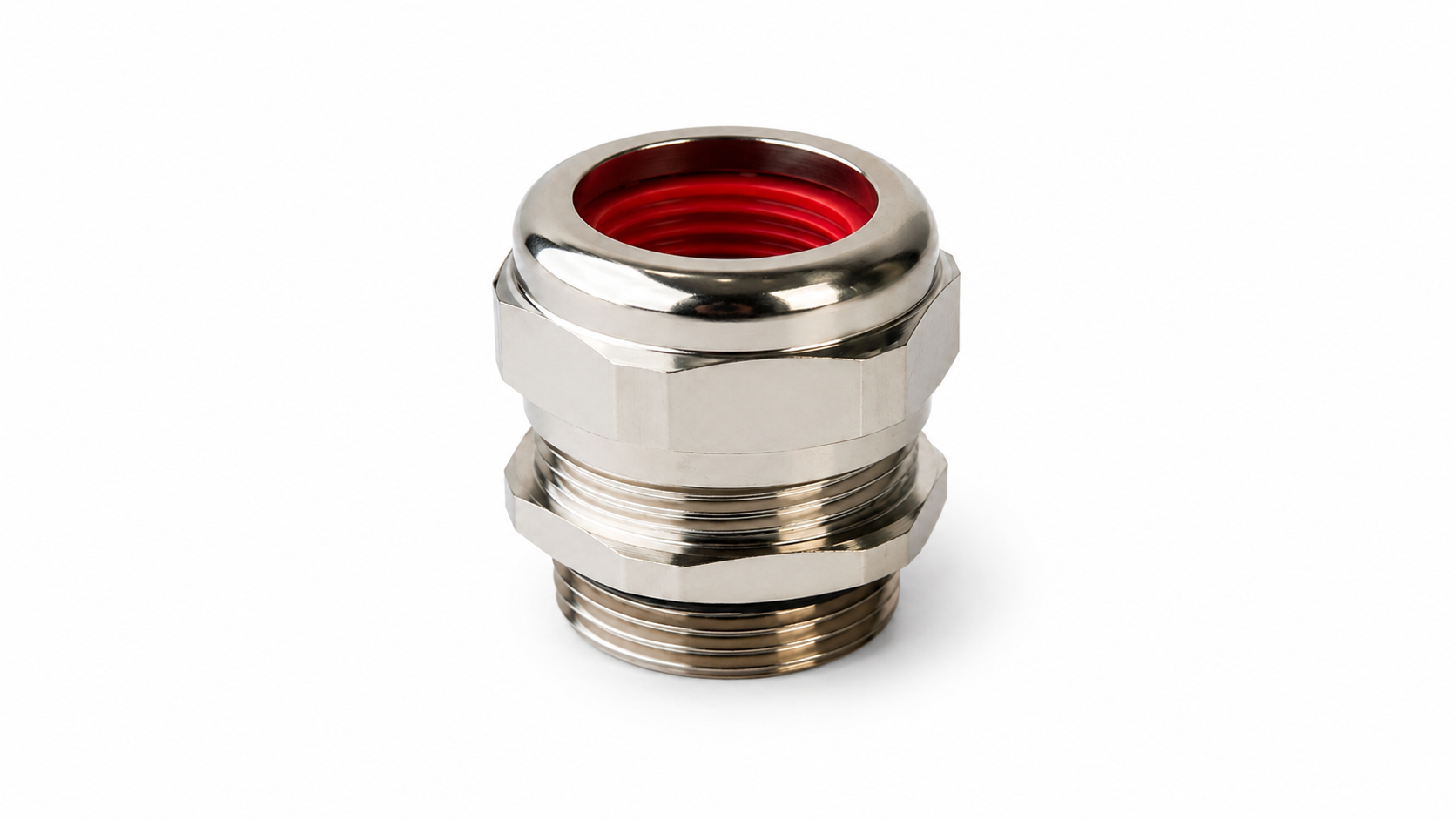

EMC-VSD Gland Type 25S 25mm Nickel Plated IP68 Unarmoured Gland (MM-EMC-25S 13.0-16.0)

For indoor and outdoor glanding of unarmoured Variable Speed Drive (VSD) circular cables with Foil and Braid screening. Excellent shield contact through the contact sleeve with the braided shield terminating in the screwed cable gland.


Type EMC Uarmoured Gland
Cable Types EMC/VSD Unarmoured circular cables
Thread Metric M25(S)
Cable Dia.(mm) Min:13.0 Max:16.0
Gland Material Nickel-plated Brass
IP Rating IP68 as per EN60529
Seal Type Nitrile Black Rubber
Operating Temperature -35°C to +120°C.
Finish Nickel Plated
Accessories PVC/LSF Shroud, Earth Tag, Serrated Washer, Adaptor / Reducer.

Datasheet (PDF)
SKU: MM-EMC-25S (13.0-16.0) Category: Tags: , ,
