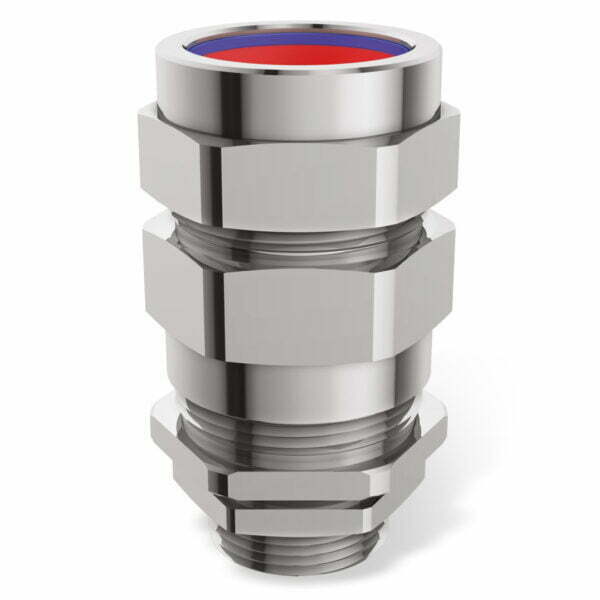

E1W Double Compression Type 25S 25mm Nickel Plated Armoured Gland c/w lock nut (MM-E1W-25S)

Double compression armoured gland for use with AWA or SWA cables.\n\n


Type E1W Double Compression Armoured Gland
Cable Types For all types of AWA or SWA armoured cables.
Thread Metric M25
Inner Cable Dia.(mm) Min:13.0 Max:16.0
Outer Cable Dia.(mm) Min:18.0 Max:24.0
Gland Material Nickel-plated Brass
IP Rating IP66

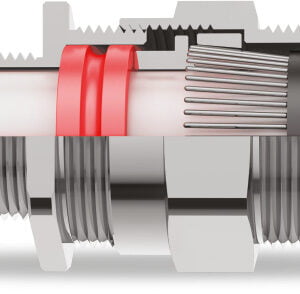

Sealing Ring Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard Seals (Nitrile) -20°C to +80°C. On request (Silicone) -60°C to +180°C.
Accessories PVC S/ LSF Shroud, Earth Tag, Serrated Washer, Adaptor / Reducer.

Datasheet (PDF)
