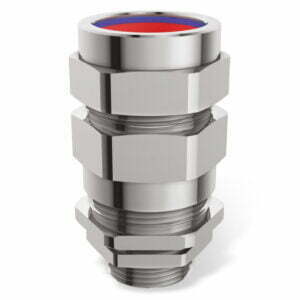

E1W Double Compression Type 75L 75mm Nickel Plated Armoured Gland c/w lock nut (MM-E1W-75L)

Double compression armoured gland for use with AWA or SWA cables.

FEATURES:

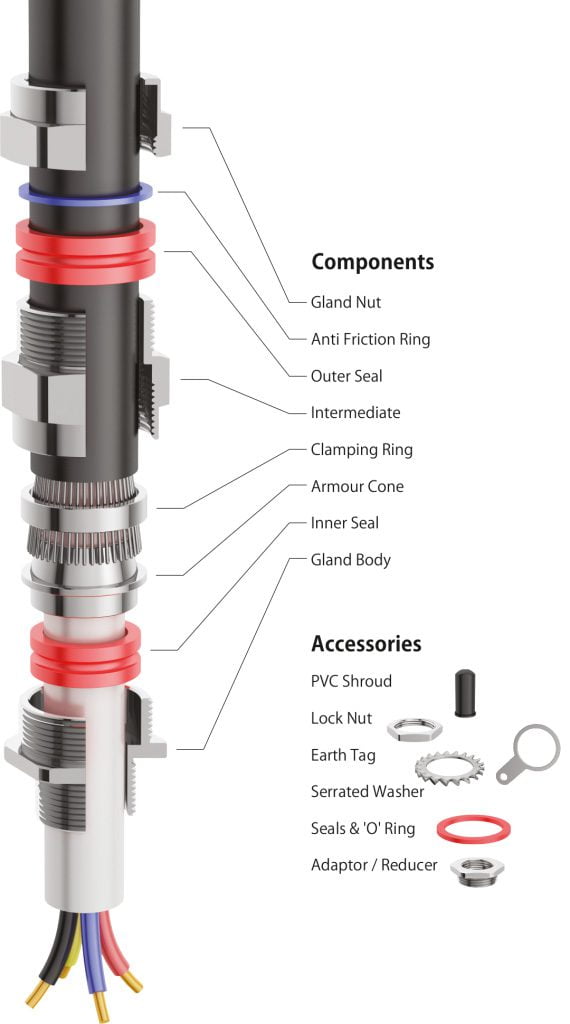

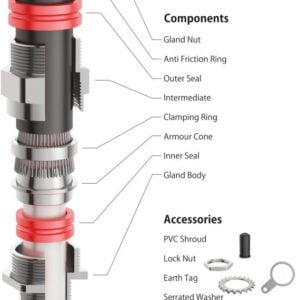

Type E1W Double Compression Armoured Gland
Cable Types For all types of AWA or SWA armoured cables.
Thread Metric M75
Inner Cable Dia.(mm) Min:62.0 Max:68.5
Outer Cable Dia.(mm) Min:69.0 Max:78.0
Gland Material Nickel-plated Brass
IP Rating IP66

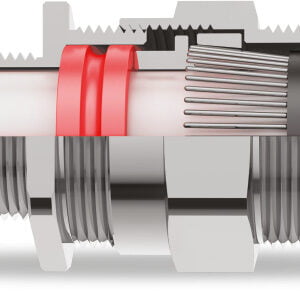

Sealing Ring Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard Seals (Nitrile) -20°C to +80°C. On request (Silicone) -60°C to +180°C
Accessories PVC S/ LSF Shroud, Earth Tag, Serrated Washer, Adaptor / Reducer.

Datasheet (PDF)
SKU: MM-E1W-75L Category:
