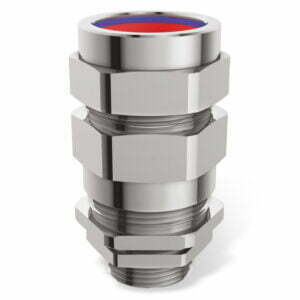

E1W Double Compression Type 63L 63mm Nickel Plated Armoured Gland c/w lock nut (MM-E1W-63L)

Double compression armoured gland for use with AWA or SWA cables.

FEATURES:

Type E1W Double Compression Armoured Gland
Cable Types For all types of AWA or SWA armoured cables.
Thread Metric M63
Inner Cable Dia.(mm) Min:50.0 Max:56.0
Outer Cable Dia.(mm) Min:56.0 Max:66.0
Gland Material Nickel-plated Brass
IP Rating IP66
Sealing Ring Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard Seals (Nitrile) -20°C to +80°C. On request (Silicone) -60°C to +180°C

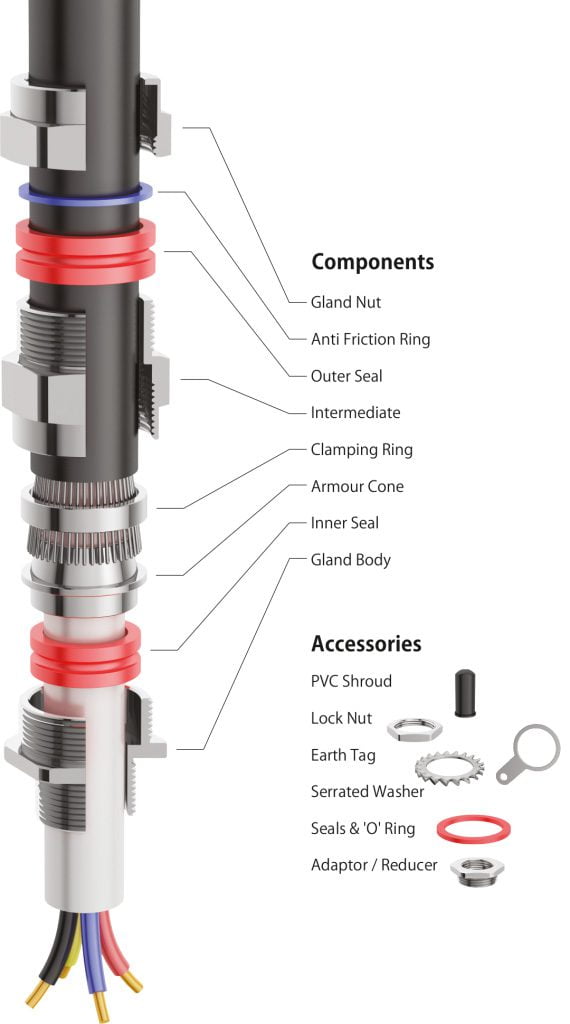

Accessories PVC S/ LSF Shroud, Earth Tag, Serrated Washer, Adaptor / Reducer.

Datasheet (PDF)
SKU: MM-E1W-63L Category:
