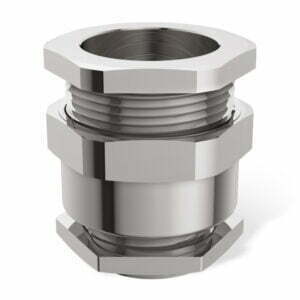

A1/A2 Type 75L 75mm Nickel Plated Unarmoured Gland c/w lock nut (MM-A1A2-75L)

For indoor and outdoor glanding of unarmoured pvc or rubber sheathed circular cables.

FEATURES:

Type A1/A2 Uarmoured Gland
Cable Types Unarmoured circular cables
Thread Metric M75
Cable Dia.(mm) Min:61.2 Max:67.9
Gland Material Nickel-plated Brass
IP Rating IP68
Seal Type Displacement type
Operating Temperature Standard seals (Nitrile) -20°C to +80°C. On request (Silicone) -60°C to +180°C
Finish Nickel Plated

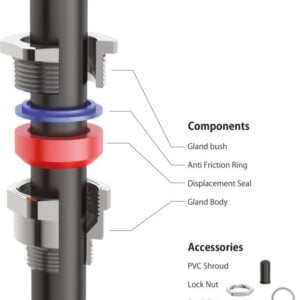

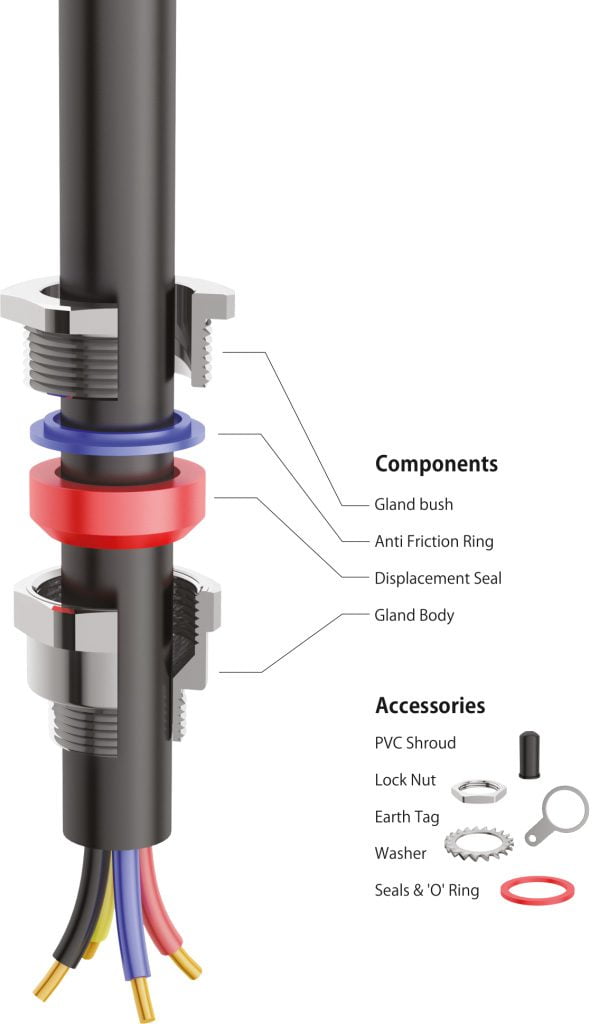

Accessories PVC/LSF Shroud, Earth Tag, Serrated Washer, Adaptor / Reducer.

Datasheet (PDF)
SKU: MM-A1A2-75L Category:
