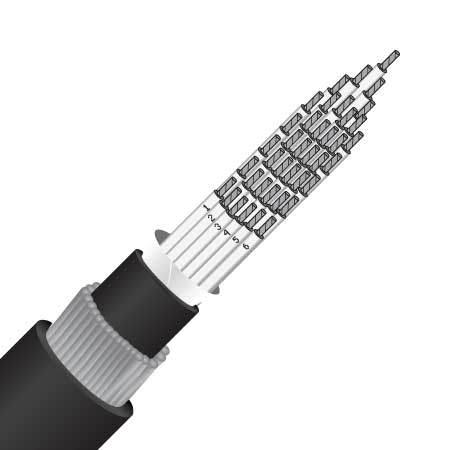

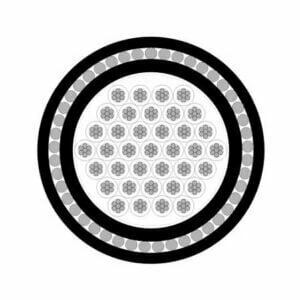

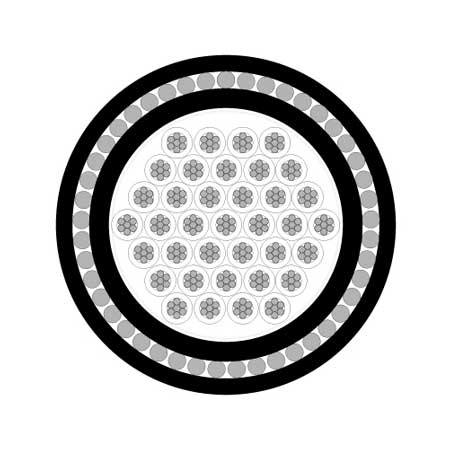

37 Core, 1.5mm², TCW, PVC 90°C, SWA, 0.6/1KV, Control Cable (MASCC137/1.5SWA)

Application: For mains and sub mains power circuits where mechanical protection is required. Fixed application. Suitable for direct burial.

Voltage 0.6/1KV
Conductor Stranded Tinned Copper Conductor
Insulation PVC, V90,
Core Colours White (Numbered)
Separator PET Tape or Non-Woven Tape
Bedding SPVC, 5V-90, Black
Armour Galvanized Steel Wire
Sheath SPVC, 5V-90, Black
Operating Temp. -20°C to +90°C
Max. DC Resistance @ 20°C (Ω/KM) 13.6

Standards: AS/NZS1125 , AS/NZS3008, AS/NZS3808 , AS/NZS5000.1, AS/NZS60079.14, IEC60332-1-2, IEC 60332-3-22, RoHS Compliant
