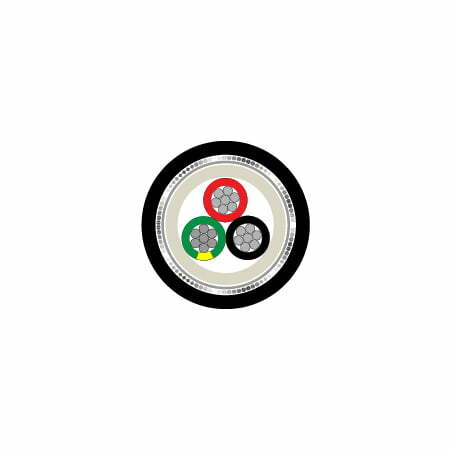

2 Core + Earth (3G), 2.5mm², TCW, XLPE 90°C, Foil/Braid, 0.6/1KV, Variable Speed Drive Cable (MASVSD3G2.5)


For use with VSD’s where protection against RFI and EMI is required. Fixed application

Voltage 0.6/1KV
Conductor Stranded Tinned Copper Conductor
Insulation XLPE, X-90
Core Colours Red, Black, Green/Yellow
Bedding SPVC, 5V-90
Screen 85% Tinned Copper Braid c/w 100% Foil Screen
Sheath SPVC, 5V-90, Black
Operating Temp. -20°C to +90°C
Max. DC Resistance @ 20°C (Ω/KM) 7.41

Standards: AS/NZS1125 , AS/NZS3008, AS/NZS5000.1, IEC60332-1-2, RoHS Compliant

Datasheet (PDF)
SKU: MASVSD3G2.5 Category: Tags: ,
